Geomax Zeta125G green beam pipelaying laser with Li-Ion rechargeable batteries.
The GeoMax Zeta 125G pipelaying laser is a compact, high-precision instrument designed for accurately setting line and grade during pipe installation, particularly in drainage and sewer construction. It projects a clearly visible green laser beam along the pipe run, allowing operators to maintain correct alignment and slope over long distances with minimal error. The unit features fast self-levelling, cross-axis compensation, and optional automatic target alignment, which improve efficiency and reduce setup mistakes on site.

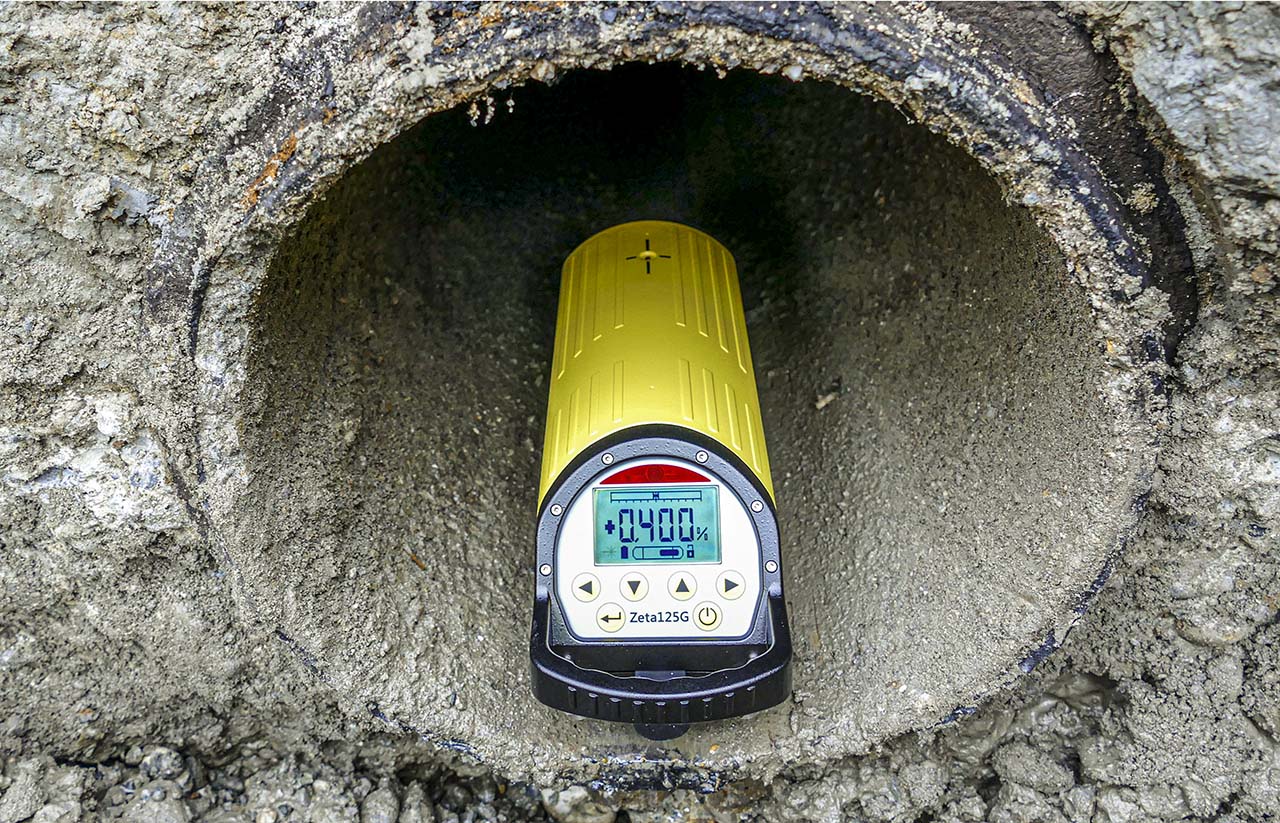

Built with a rugged, fully metal housing and an IP68 rating, it is highly resistant to water, dust, and harsh construction environments. Its slim design enables use in tight spaces such as narrow manholes and pipes as small as 125 mm in diameter, while its adjustable grade range (typically around -10% to +40%) allows it to handle a wide variety of pipe gradients.
The Zeta 125G is valued for its accuracy, durability, and ease of use in demanding civil engineering applications.
Features

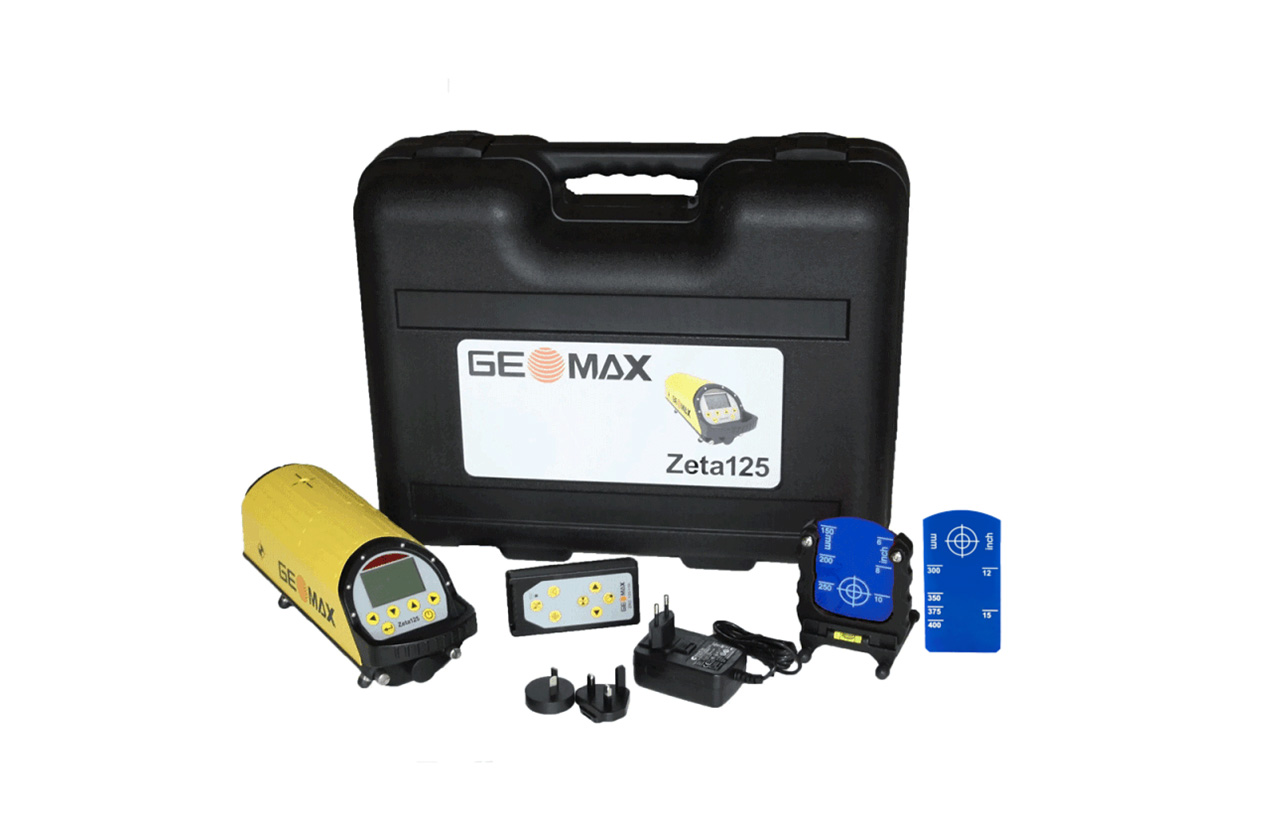

Standard Kit Includes
| Laser beam | Green laser diode |
|---|---|
| Laser class | Class 3R |
| Grade range | -10% to +40% |
| Self-levelling range: | -15% to +45% |
| Ingress protection | IP68 |
| External power source: | 110/230 V AC or 12 V DC |
| Battery | 40h Li-Ion battery |
| Operating temperature | -20 C to 50 C |
| Size and weight | 305 x 105 x 113 mm; 2.07 kg |
| Operating range | < 200 m |
