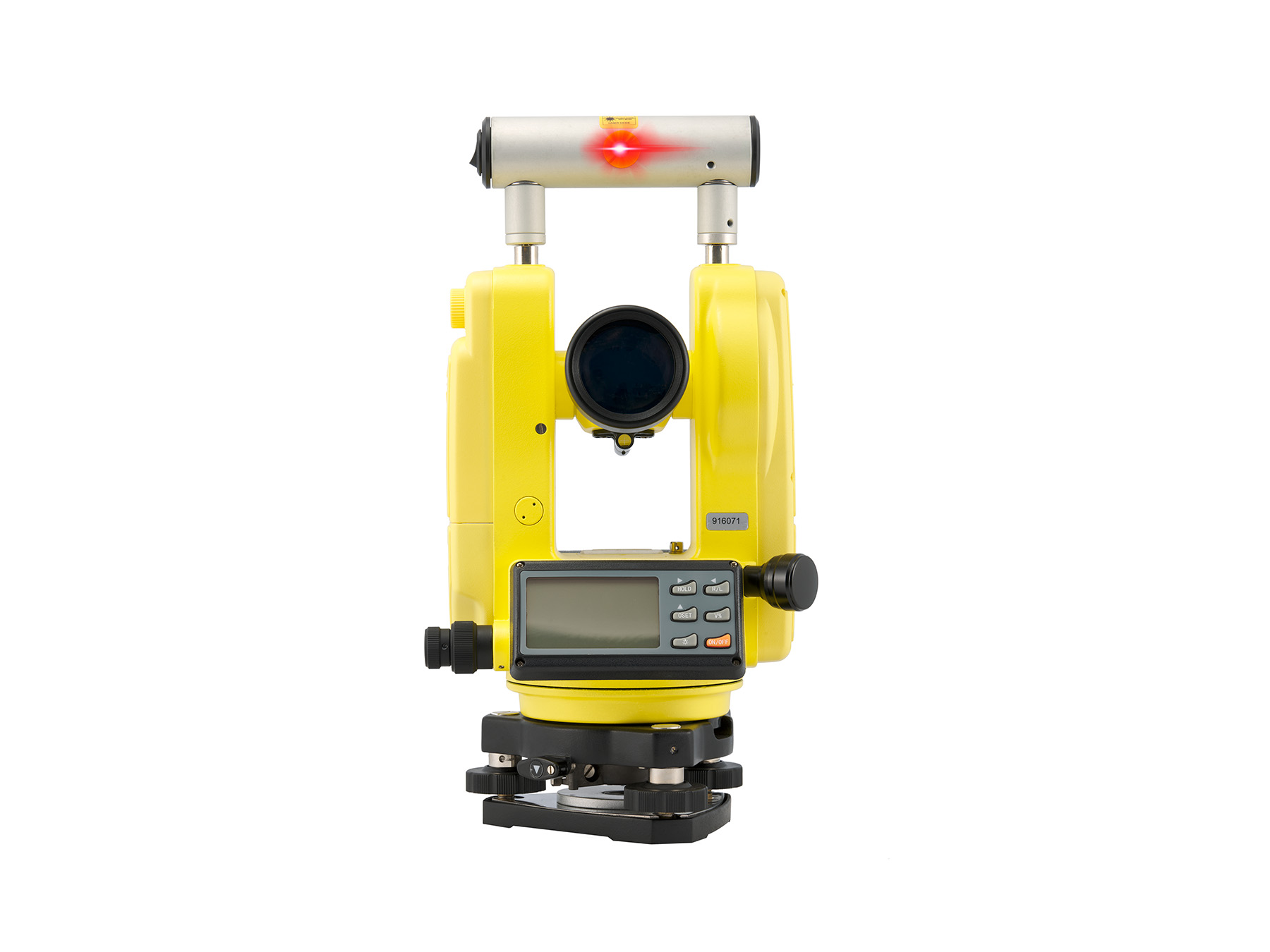

Digital Theodolite with Laser Scan

AUD $5,184.30 inc GST

Digital theodolite with vertical scanning beam for alignment of vineyards or fence lines.

SKU: THEO.KD02.RL

Availability: In Stock

With vertical compensation and 2” accuracy the digital theodolite provides you with the precision required for your most demanding jobs for an affordable price without adding complexity.

Vertical scanning beam allows for one person set-out or special applications like vineyards or fence lines

Easy to operate
Optical plummet
Two clear LCD displays
Rechargeable and alkaline battery packs
Horizontal angle can be set to zero from any point
2“ accuracy
High power rotating laser beam to use with receiver
Long range operating distance
Ideal for vineyard and rural fencing contractors

Additional information

Precision	2”
Display resolution	1” or 5”
Display units	DEG (360° 00’ 00”), GON (400), MIL (6400), V / %
Compensator	Automatic vertical compensator, user set On/Off
Compensator working range	± 3’
Magnification	30x
Objective aperture	45 mm (1.7 in)
Minimum focusing distance	1.35 m (4.43 ft)
Stadia multiplication factor/constant	100/0
Laser plummet	Visible laser point
Laser plummet accuracy	1.5 mm at 1.5 m instrument height
Operating temperature	-20° C ~ +50° C
Ingress Protection	IP54 (dust and water resistant)
Weight including battery and tribrach	4.5 kg (9.9 lb)
Type of battery	Rechargeable NiMH, replacement alkaline battery pack
Battery operating time	36 hrs (without laser plummet)
